Input Data
Enter the overall belt width and select the corresponding unit.
Results
Recommended Number of Drive Sprockets
—
Belt Width in Inches—
Calculated Quantity Before Rounding—
Approximate Sprocket Spacing—
Spacing Unit—
Engineering Notes
- The recommended quantity is rounded upward to the next whole sprocket.
- Verify the final sprocket arrangement, shaft capacity, keyways, hubs and belt engagement before installation.
- This calculator provides a preliminary engineering estimate and does not replace the belt manufacturer's installation requirements.
Sprocket Positioning

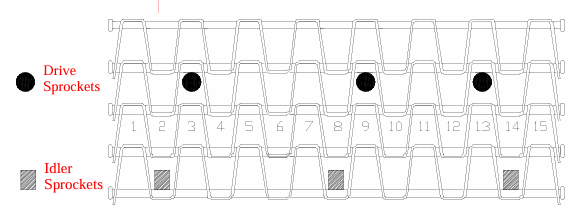

The sprockets must be positioned according to the belt openings, as shown below.
- Drive shaft: place the first sprocket at the third opening from each belt edge. Position the remaining drive sprockets at equally spaced odd-numbered openings.
- Idler shaft: place the first sprocket at the second opening from each belt edge. Position the remaining idler sprockets at equally spaced even-numbered openings.
- Maintain symmetrical spacing across the belt width whenever possible.
